The following are additional photos of one more way to mount our trucks in a Corgi® PCC.

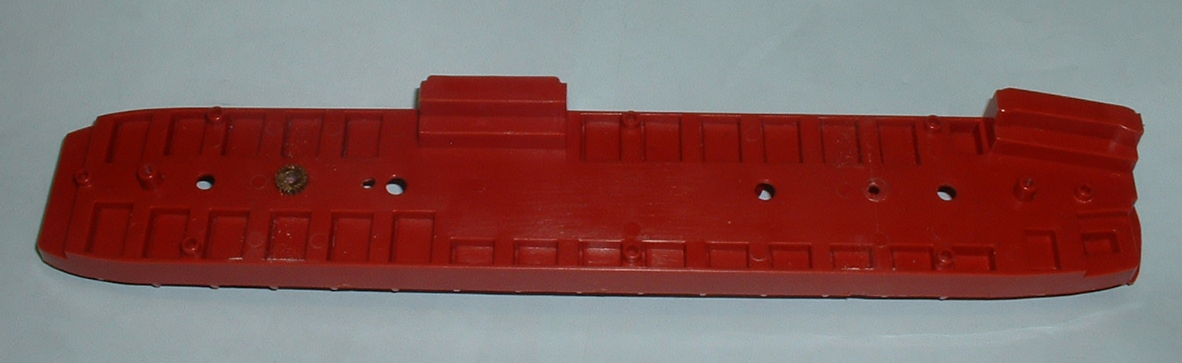

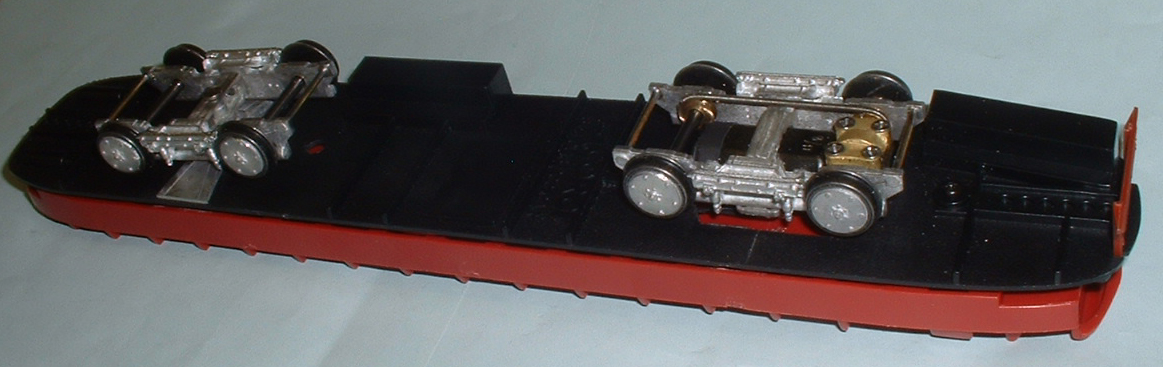

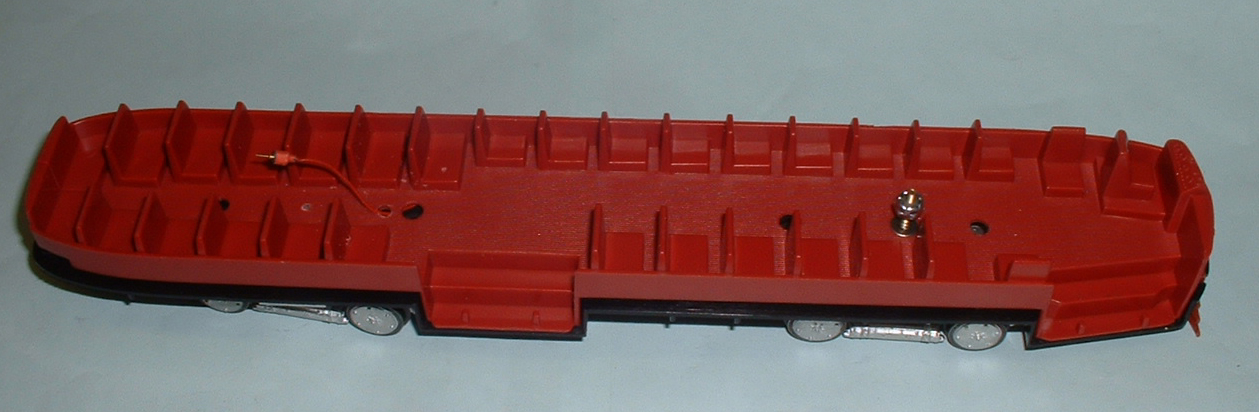

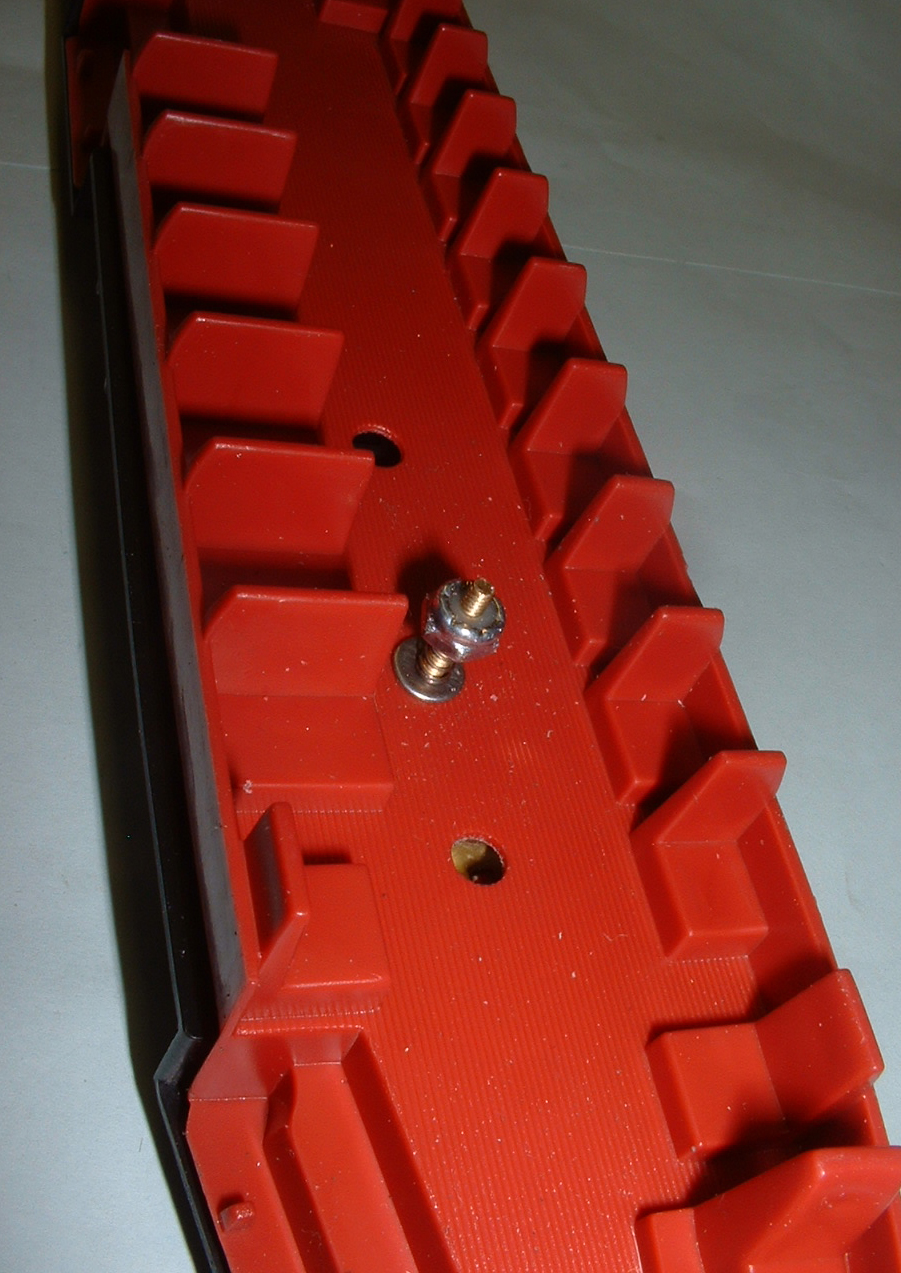

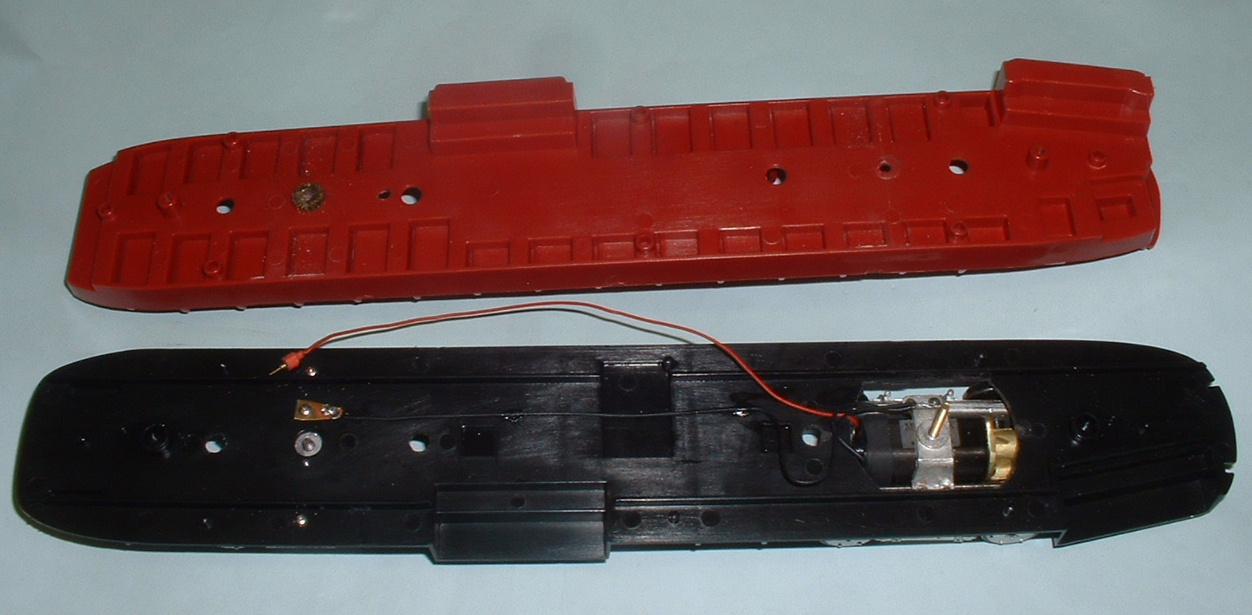

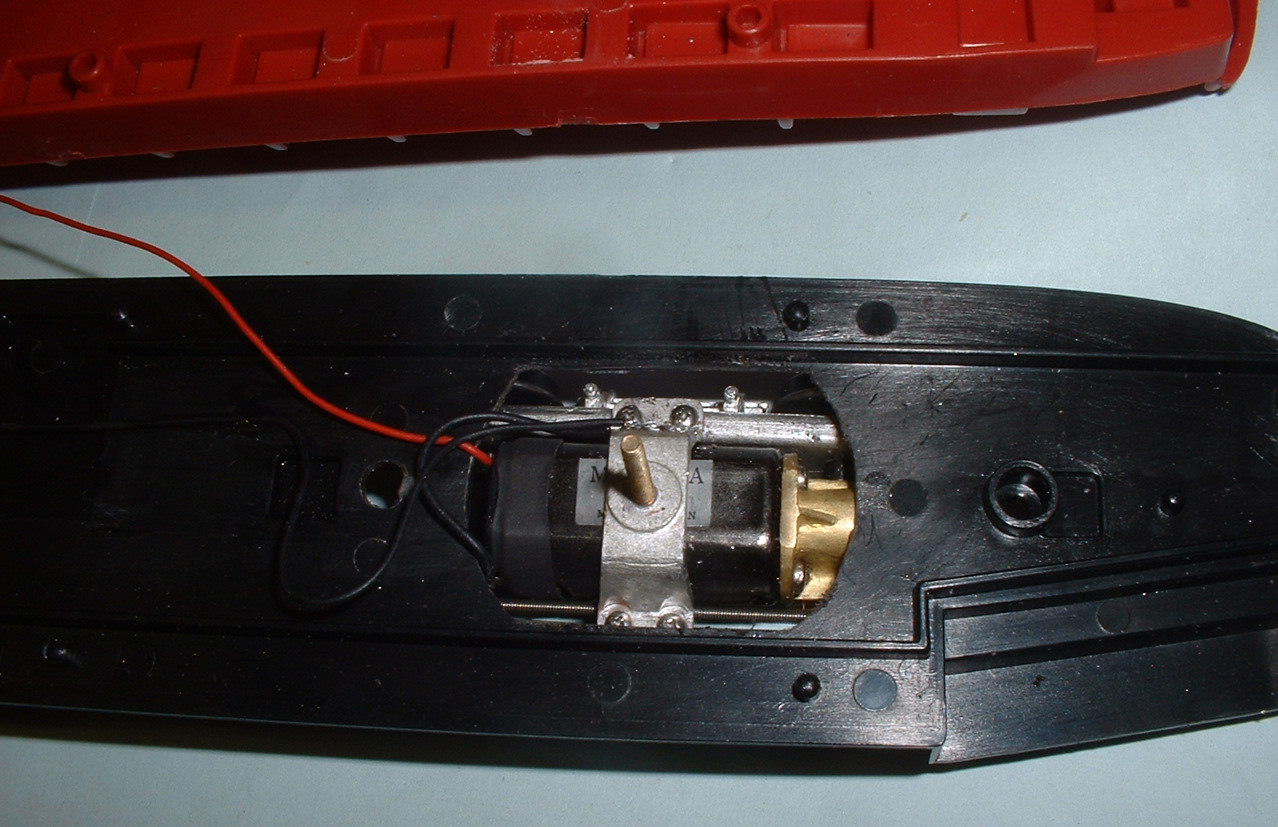

Note that doing it this way returns the lower floor to the model, and the motor hole is only cut in the lower floor. The power truck is mounted to the upper floor, and both floors are held in place by replacing the two center posts with something one quarter inch longer treaded at the outer end for the use of retainer nuts.

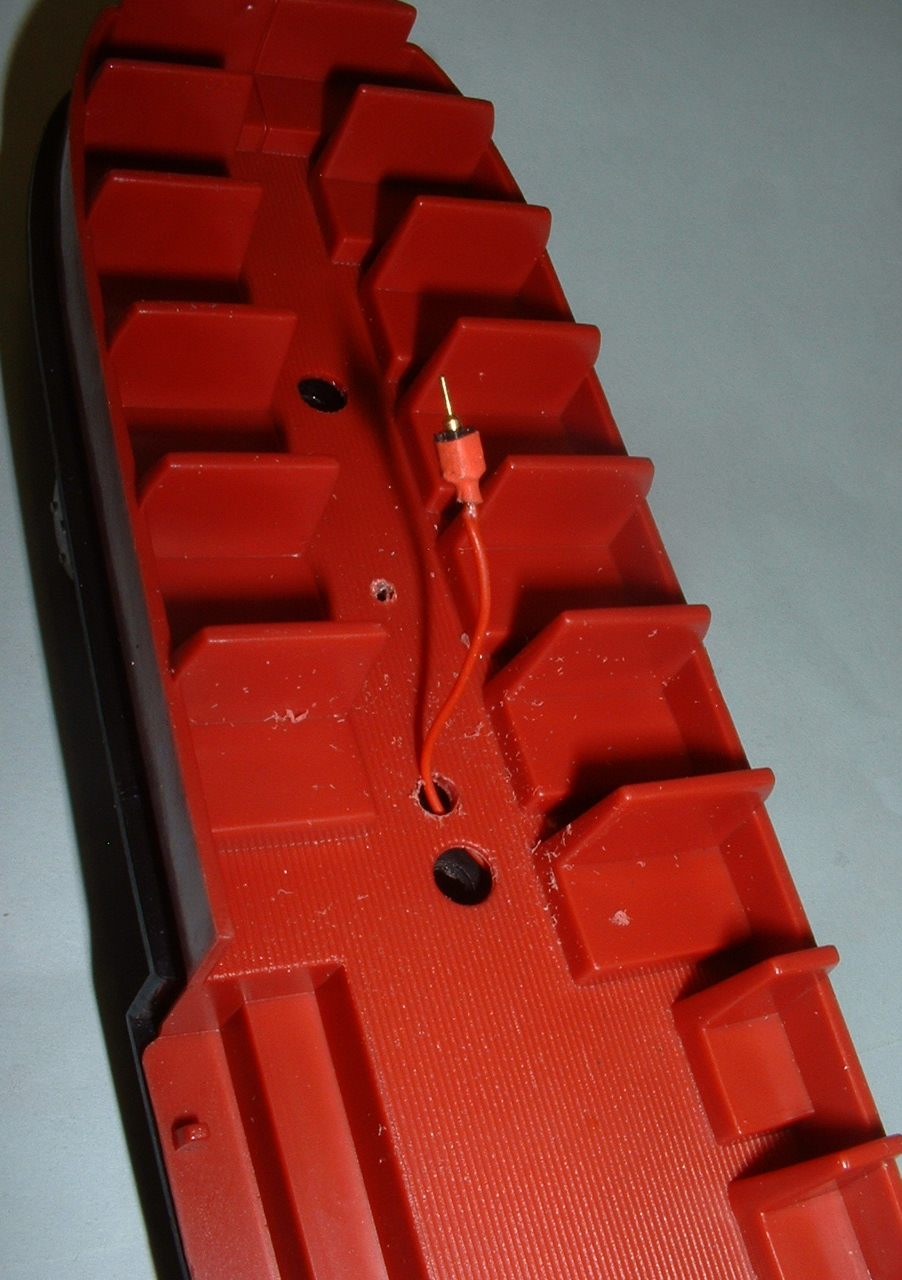

The small plug shown in photo five is to allow the car body to be separated from the floor assembly.
